Key Specifications
- Net Power - ISO 9249 309 kW
- Operating Weight 47600 kg
- Maximum Digging Depth 7690 mm
- Emission Tier 3
High Efficiency, Low Operating Costs | Caterpillar Medium Excavator

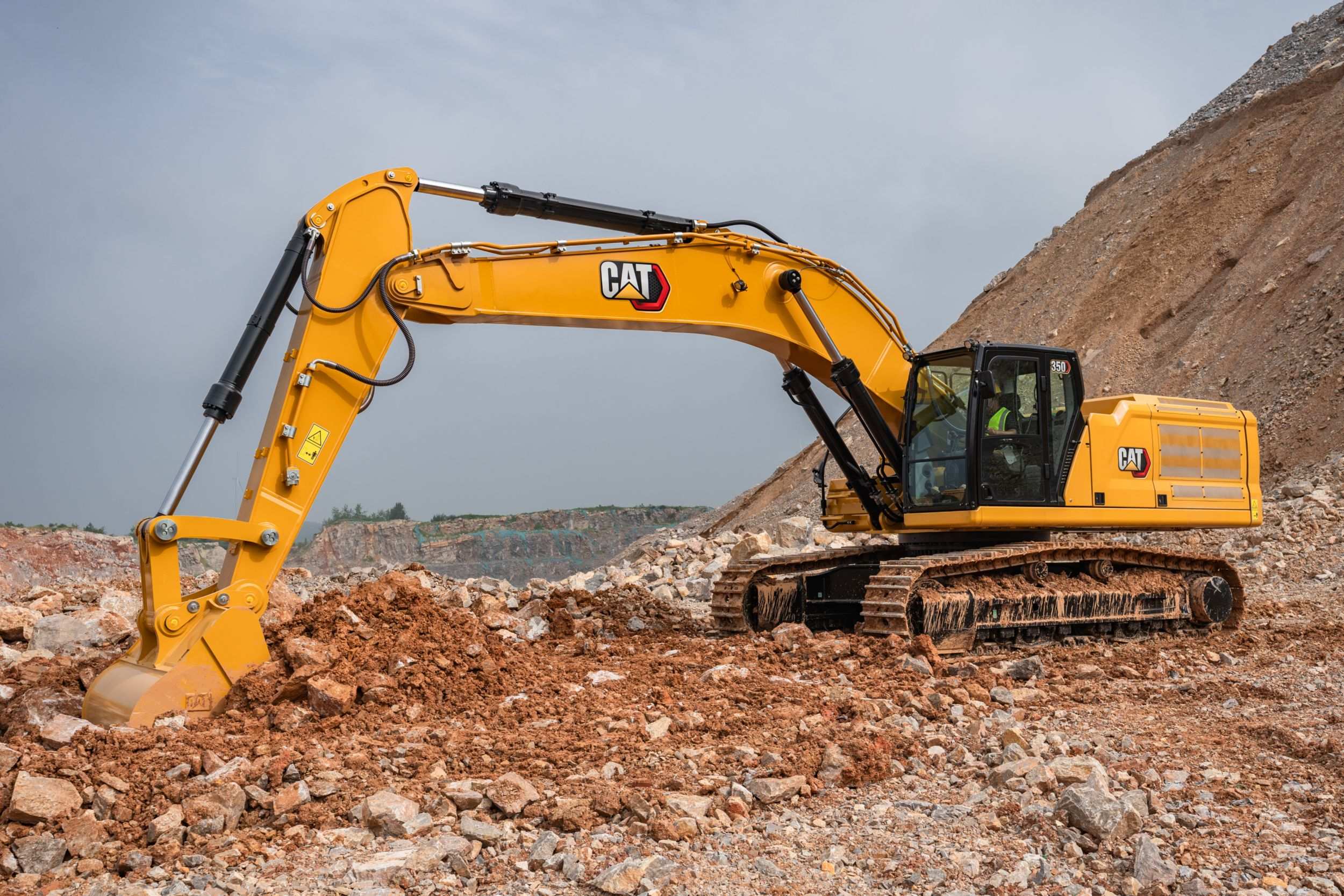

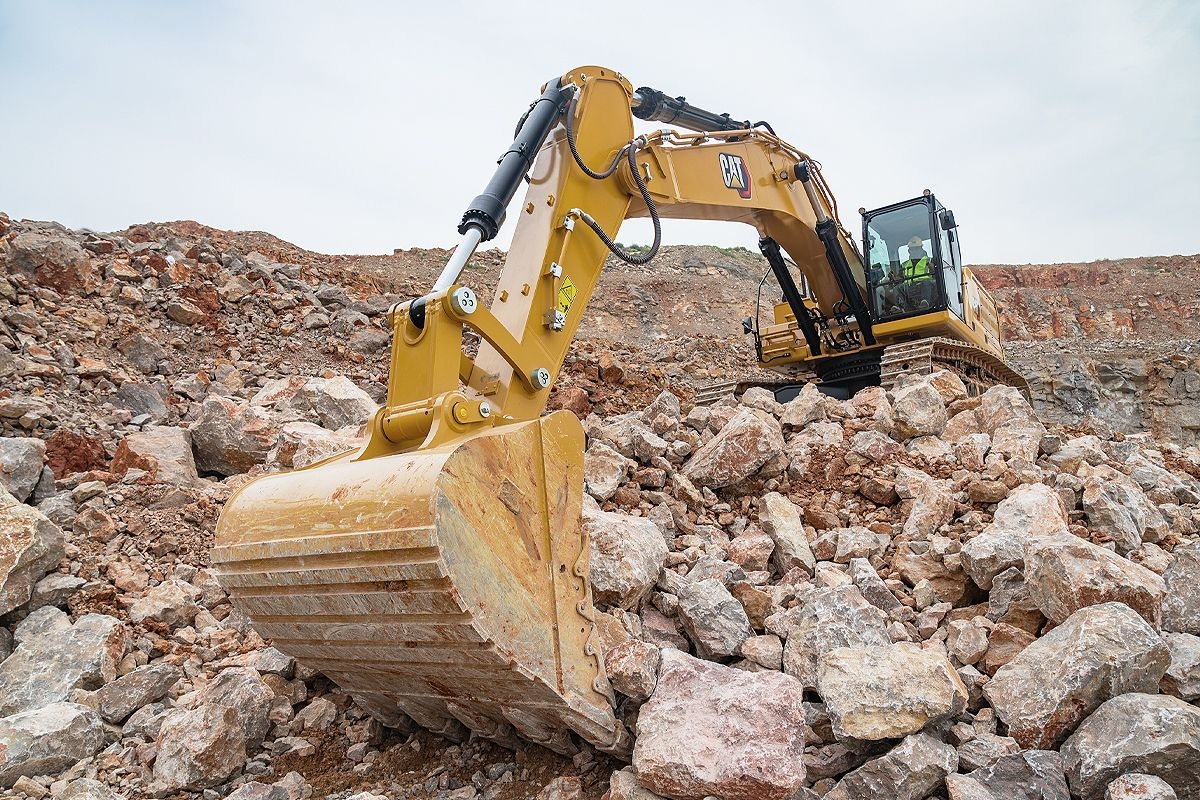

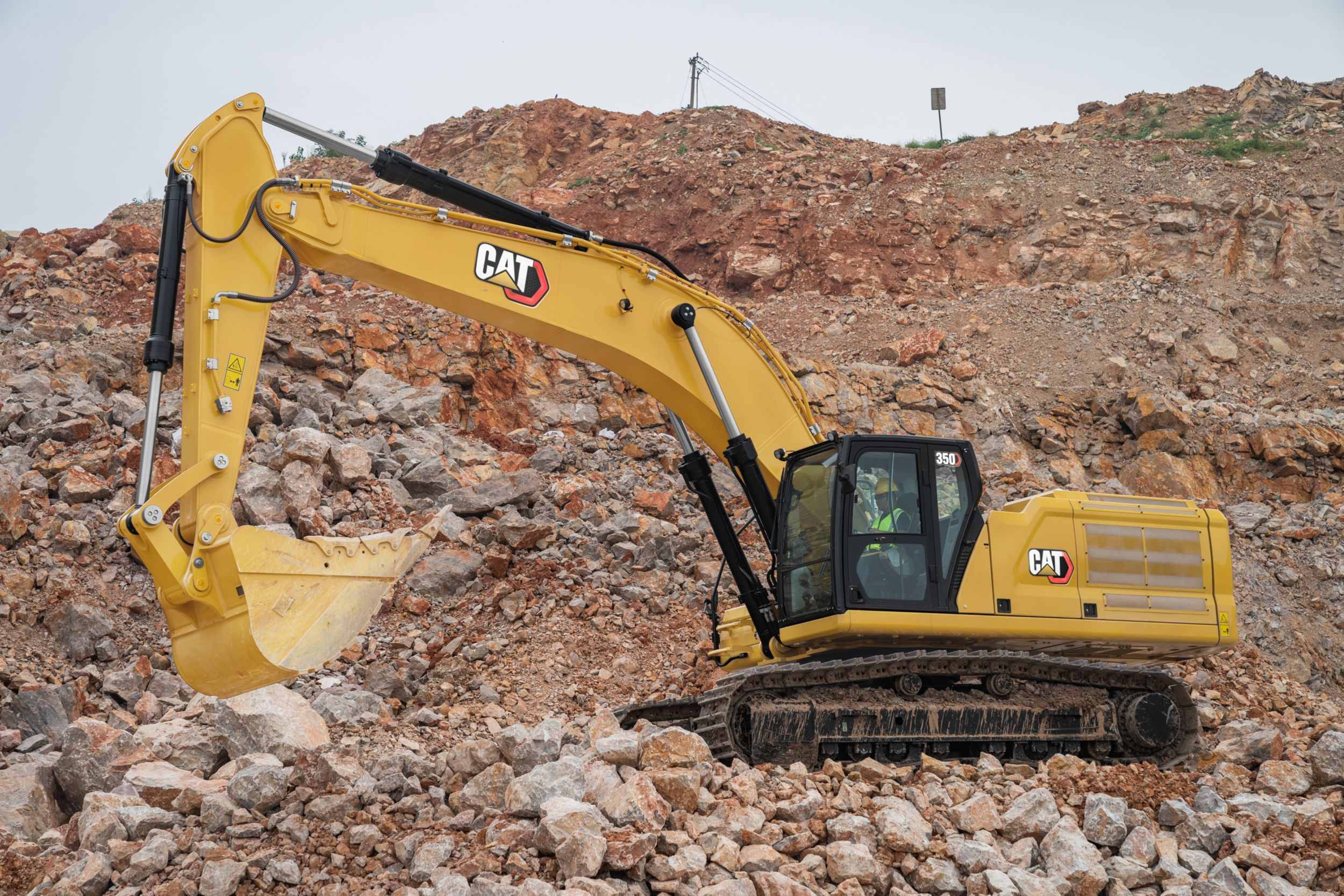

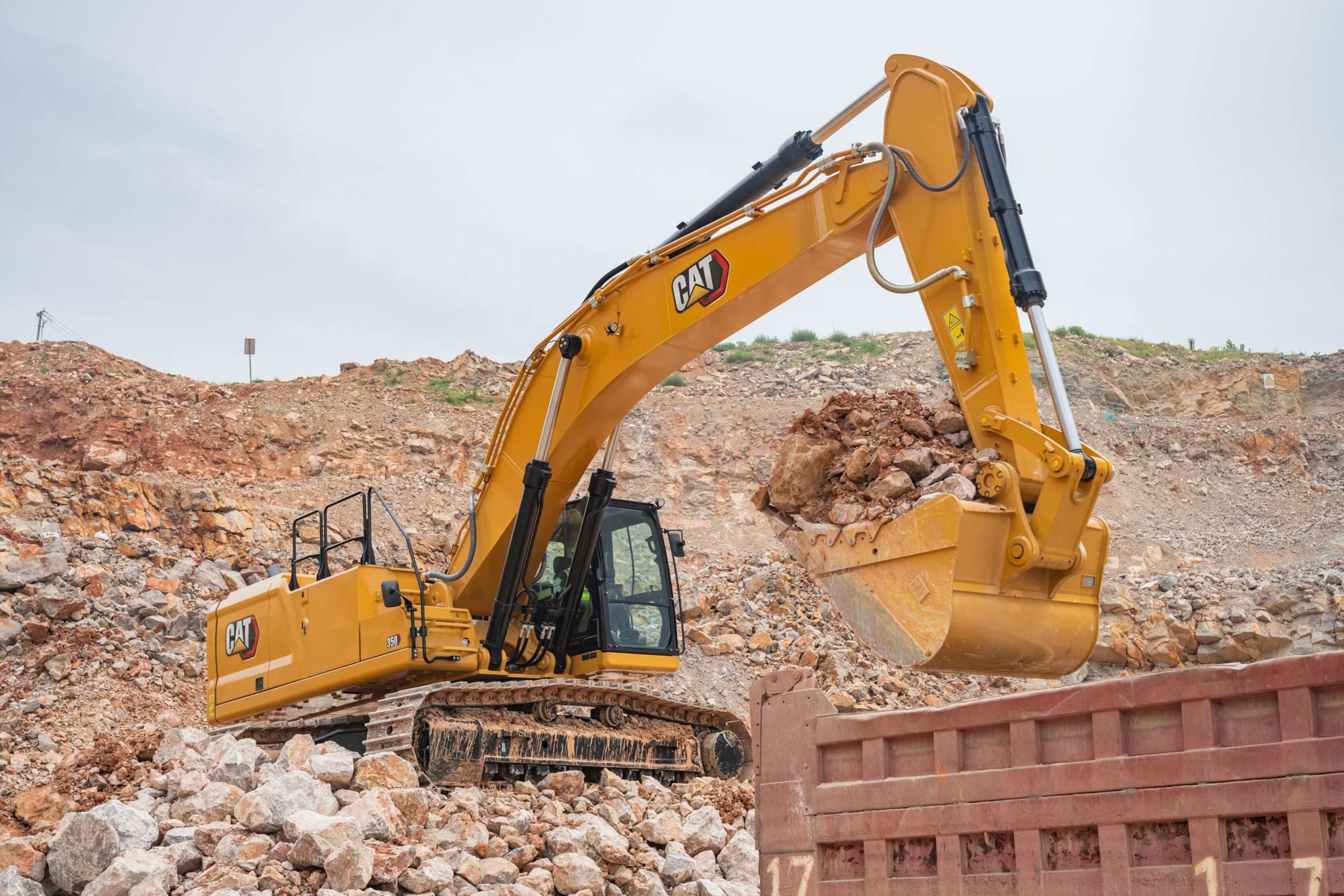

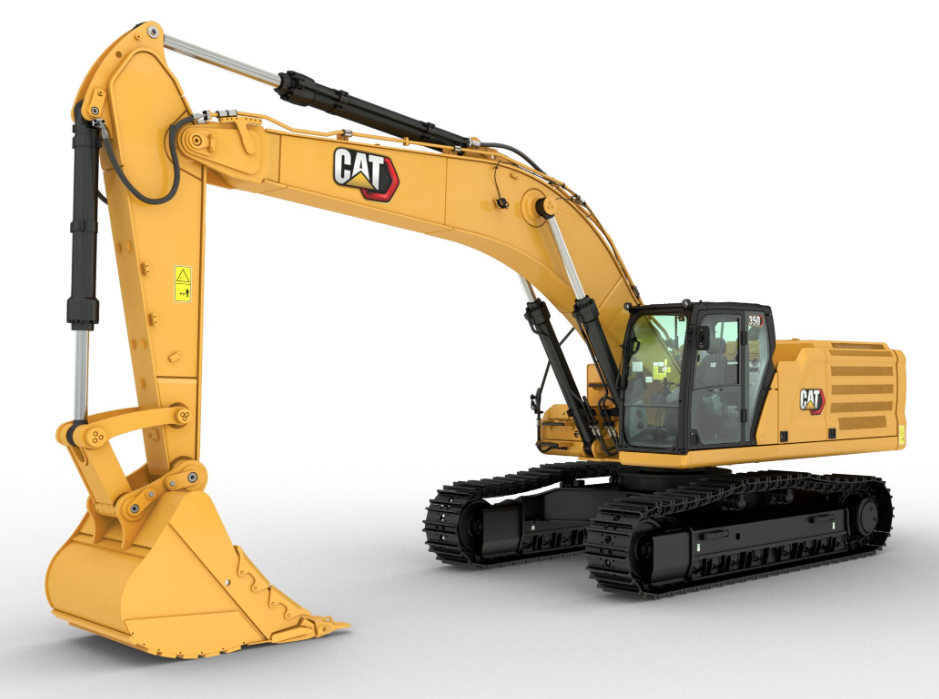

The CAT 350 Hydraulic Excavator is engineered to deliver exceptional performance in construction, mining, and earthmoving applications. Below is a comprehensive breakdown of its technical specifications to help you evaluate its capabilities for your projects.
From engine efficiency to working range, every detail is optimized for productivity and reliability.
| Net Power - ISO 9249 | 309 kW |
| Net Power - ISO 9249 (DIN) | 420 hp |
| Engine Model | C9.3 B |
| Engine Power - ISO 14396 | 310 kW |
| Bore | 115 mm |
| Stroke | 149 mm |
| Displacement | 9.3 L |
| Operating Weight | 47600 kg |
| Max Digging Depth | 7690 mm |
| Max Reach at Ground Level | 11760 mm |
| Max Cutting Height | 10700 mm |
| Max Loading Height | 7380 mm |
| Min Loading Height | 2710 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 7550 mm |
| Maximum Vertical Wall Digging Depth | 5630 mm |
| Bucket Digging Force - ISO | 266 kN |
| Stick Digging Force - ISO | 200 kN |
| Boom | Reach 6.9 m (22'8") |
| Stick | Reach 3.35 m (11') |
| Bucket | SD 2.70 m³ (3.60 yd³) |
